Solutions for Bound Material Scanning
The digitization of bound materials such as books, magazines, journals, and newspapers is especially demanding. It requires a solution that delivers conservation handling, preservation image quality, production speed and extensive flexibility. DT systems that meet all of these demands and are ideal for digitizing bound materials.
Bound materials require careful handling to ensure the process of digitization does not degrade their condition. This is especially important with tightly bound materials, delicate parchment, items with friable illuminations, and materials already in degraded condition. Each of our systems provides a range of handling options keeping the operator in control of the material, thereby ensuring their safety.
100° vs 180° Opening
All DT systems support scanning bound materials open to 100°, minimizing tension on the binding and maximizing the per-page capture resolution. Most of our systems can also be configured to capture material opened to 180° which allows both pages to be captured simultaneously for a faster workflow. The BC100 only allows a 100° opening but uses two cameras and thereby maintains that same faster workflow.
PSI-Controlled Contact vs Non-Contact

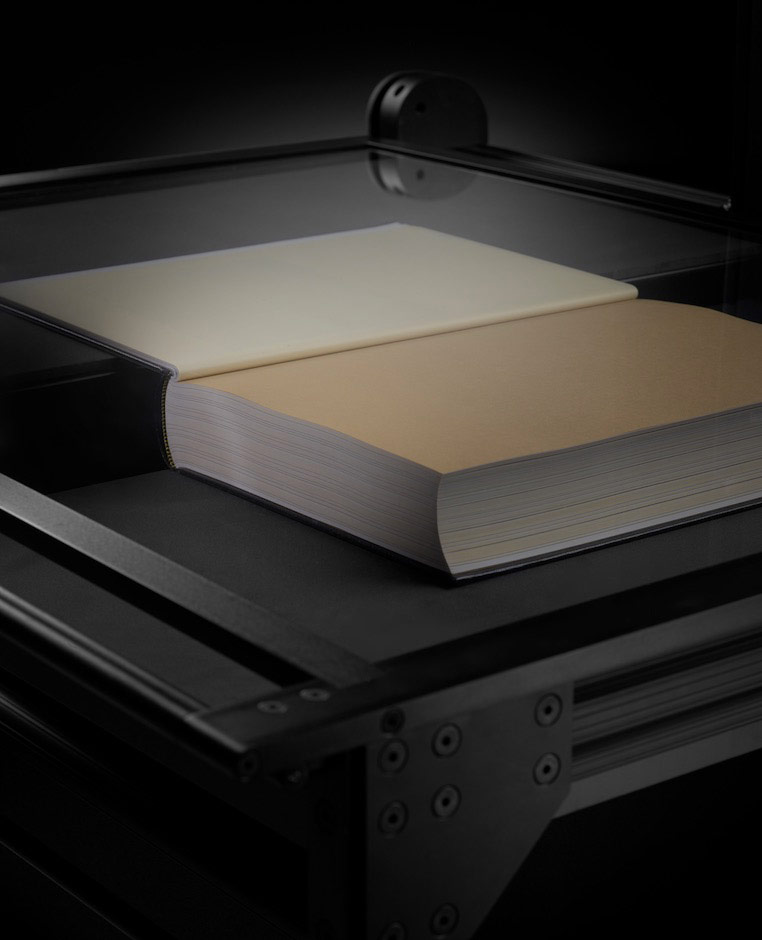

Contact scanning uses a glass platen to reduce or eliminate page curl. Our DT Versa and DT BC100 use purpose-built pneumatics to offset the weight of the glass platen. This puts the operator in complete control of how much pressure is applied to the materials in order to keep within safe limits for any given object.
Material Handling Options with all DT Book Scanning Systems:
|Solution||100° opening||180° opening||100° opening|
|DT BC100||Native||N/A||Optional Rare Book Module|
|DT Versa||Optional V-Cradle||Native||Optional Book Support|
|DT Element||Optional V-Cradle||N/A||Optional Book Support|
|DT Atom||Optional V-Cradle||N/A||Optional Book Support|
DT solutions exceed FADGI 4-Star, ISO 19264, and Metamorfoze-Strict standards. At the heart of all of our systems are our purpose-built cameras offering up to 150mp of resolution at 16-bits of color depth. Coupled with cultural-heritage LED illumination (high CRI, high CQS, and smooth spectral shape), high-resolution lenses, and ultra-low vibration shutters this results in true Preservation Digital Objects with accurate color, tone, and detail. Our raw processing software, with its class-leading debayering algorithm, extracts pixel-level detail and color accuracy previously only seen in cumbersome multi-shot systems. Many manufacturers claim their equipment attains FADGI 4-star or ISO ISO 19264-1 A-class quality but very few others do.
A collection of “only a few thousand” bound-materials can contain millions of pages. With such volume it is critical to maintain production speed in both the capture and post-processing stages.
Our systems capture in a small fraction of a second and display almost immediately. The sophisticated material handling systems of the DT Versa and DT BC100 allow the operator to move through the material as quickly as they feel is safe. Therefore, the capture rate is only limited by the condition of the material and whether the system is capturing facing pages or each page individually.
Capture One CH is a modern solution built on the venerable and widely used Capture One software. It is designed for cultural heritage workflows, supports all modern operating systems, is frequently updated, and can handle massive numbers of files with ease. Checking focus, zooming in on high resolution images, and scrolling through pages for quality control is lightning fast. Capture One CH features book scanning tools such as AutoPPI, Autocrop and AutoDeskew, Page Splitting, LAB Support, Resolution Ruler, Batch Processing, and Raw-Stage Quality Control. These tools enable the automation of tedious post-production tasks that are inherent to the post-processing stage of book digitization. If your institution needs to OCR text, generate and quality control METS/ALTO metadata, or combine the individual pages to a PDF, our solutions integrate seamlessly with nearly any OCR and digital binding software.
Maximum Capture Speeds in Pages Per Hour (pph) for each DT Book Scanner:
|Solution||100° opening||180° opening||100° opening|
|DT BC100||Up to 1200 pph||N/A||N/A|
|DT Versa||Up to 600 pph||Up to 1200 pph||Up to 400 pph|
|DT Element||Up to 600 pph||Up to 800 pph||Up to 400 pph|
|DT Atom||Up to 600 pph||Up to 800 pph||Up to 400 pph|
The encyclopedic collections of cultural heritage institutions are rarely homogenous. Our systems are versatile, interoperable, and modularly upgradeable to ensure you’re not stuck with a limited tool box. They are also flexible in their use, allowing techniques that are impossible on competing systems.
Interoperable and Modularly Upgradable
Our solutions for digitizing flat art comprise either an all-in-one format or a modular format. Our modular solutions for digitizing bound materials include a reprographics system (such as the DT BC100, DT Element, or DT Versa), a camera head (such as the Phase One Phase One iXH), lighting, and in some cases, an optional DT V-cradle. Each of these components can be purchased, traded in and upgraded separately. For instance, an institution that purchased a [DT Versa and Phase One iXH] for scanning newspapers would only need to add the DT Film Scanning Kit to scan an encyclopedic collection of transmissive materials.
Big Books? No problem
Many historical collections include oversized bound material that are too large for most book scanners. The DT BC100 glass platen supports scanning pages up to 17” x 24“ with bindings up to 4”. The DT Versa can capture facing pages of up to 17” x 25” in the cradle, or individual pages up to 30”x40” using the included hard top. The DT Element can accommodate facing pages of up to 14” x 10” using the optional v-cradle or individual pages up to 30”x40” using the hard top. For increased versatility the DT Versa and DT Element can accommodate massive bound materials of up to 54” x 70” pages in a single capture, or even larger by remounting the camera to the ceiling.
Most of the time Cultural Heritage imaging is done with very flat proscriptive lighting, typically two lights mounted 45° from the subject. However, there are situations where more creative lighting is required, for instance, to rake light across an embossed cover to enhance the dimensionality of the embossing. DT systems can provide this creative lighting. With the DT Versa and DT Element the lights are always on light stands and can be easily raised or lowered without limitations. With the DT Atom the DT Photon lights can be removed from the fixed arms and placed on stands in any position.
Courtesy of The Morgan Library & Museum, New York. Photography by Graham S. Haber.
Maximum page size for each DT Book Scanner:
|Solution||Facing Pages||Individual Page||Individual Page w/ Stitching|
|DT BC100||17” x 24”||N/A||N/A|
|DT Versa (glass)||17” x 25”||30” x 40”||N/A|
|DT Element or Versa (hard top + wedge)||20″ x 30″ or 15″ x 40″||25″ x 40″||25″ wide by any length|
|DT V-Cradle||8″ x 12″||12″ x 17″||N/A|
|Ceiling mount||No hard limit||No hard limit||No hard limit|
The DT VERSA (shown with hard top removed) is a multi-role copy stand that allows the digitization of diverse materials. From books (using the glass top plate), film (partnered with DT FSK), loose manuscripts and flat art. The DT VERSA is a fast and versatile digitizing machine that is a great compliment to any institutions preservation needs.
DT BC100 Book Scanner System

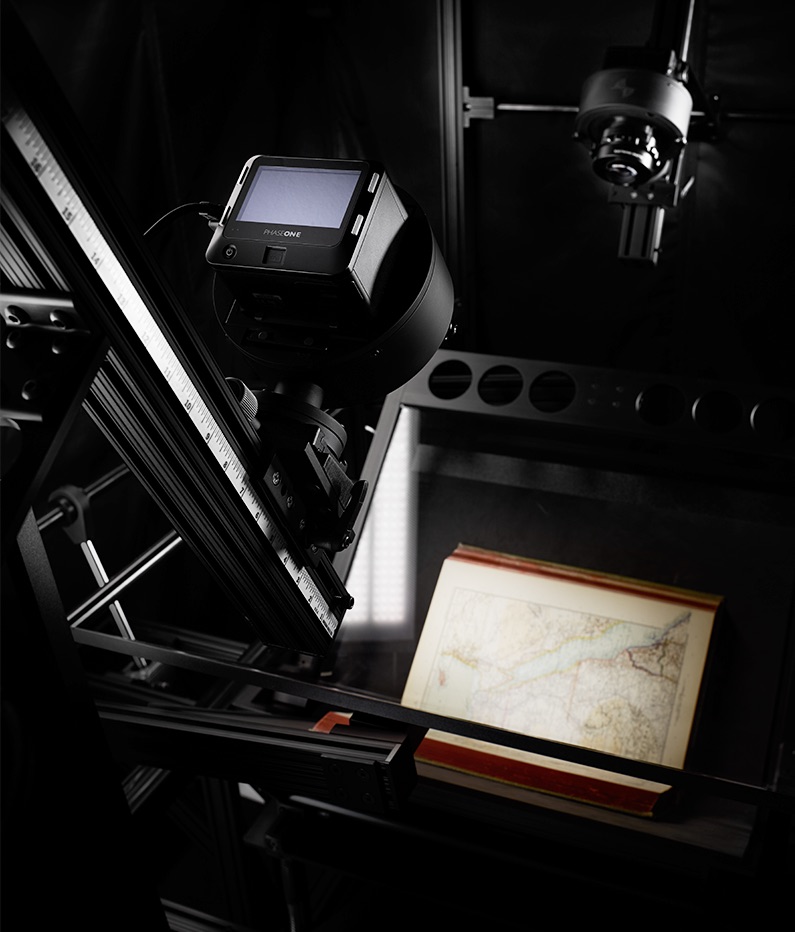

The DT BC100, the fastest and most powerful book capture system available. Using a two camera rail system and state of the art optics and image sensors the DT BC100 can capture page at an astounding rate all while preserving the integrity of the material.
Have more questions about our solutions or looking for something more custom?
