The Phase One
RC 100
FADGI 4 Quality. Entry Level Price.
Reliability. Efficiency. Limitless Performance.
The RC 100 is a high-volume powerhouse, purpose-built for demanding reproduction workflows. With manual fixed focus, constant light, and infinite capture capabilities, it ensures consistent, high-quality results with infinite optics. Optimized for loose document reproduction, it delivers A2 resolution at 400PPI, making it the ideal solution for efficiency-driven imaging environments.
FADGI 4 Star Out of the Box
Purpose-built for high-volume, demanding reproduction workflows.
The next step in faster, sharper, and more scalable digitization
The RC 100 handles high-volume workflows with ease, offering infinite capture capabilities paired with machine vision, manual focus optics and flexible high-speed connectivity for uninterrupted productivity.
Precision in every frame
Achieve consistent, high-quality results with 400ppi A2 resolution and optics engineered for flat document reproduction-perfect for detailed digitization.
Sustainable performance, cost-effective solution
Industrial-grade design and flexible high-speed connectivity for high-volume digitization, the RC 100 delivers long-term reliability and low operational costs. Optimized for all types of flat documents, it provides scalable, timesaving performance within large scale projects for archives, institutions, and digitization service providers.
High-volume performance. Precision results.
Cultural institutions and Digitization Service Providers regularly face the challenge of achieving the highest image quality, meeting the most demanding standards and following strict guidelines, while trying to handle large volumes of objects and materials.
The Phase One RC100 addresses this challenge and provides an Out-Of-The-Box FADGI 4-Star compliance, as well as simple, intuitive workflows.

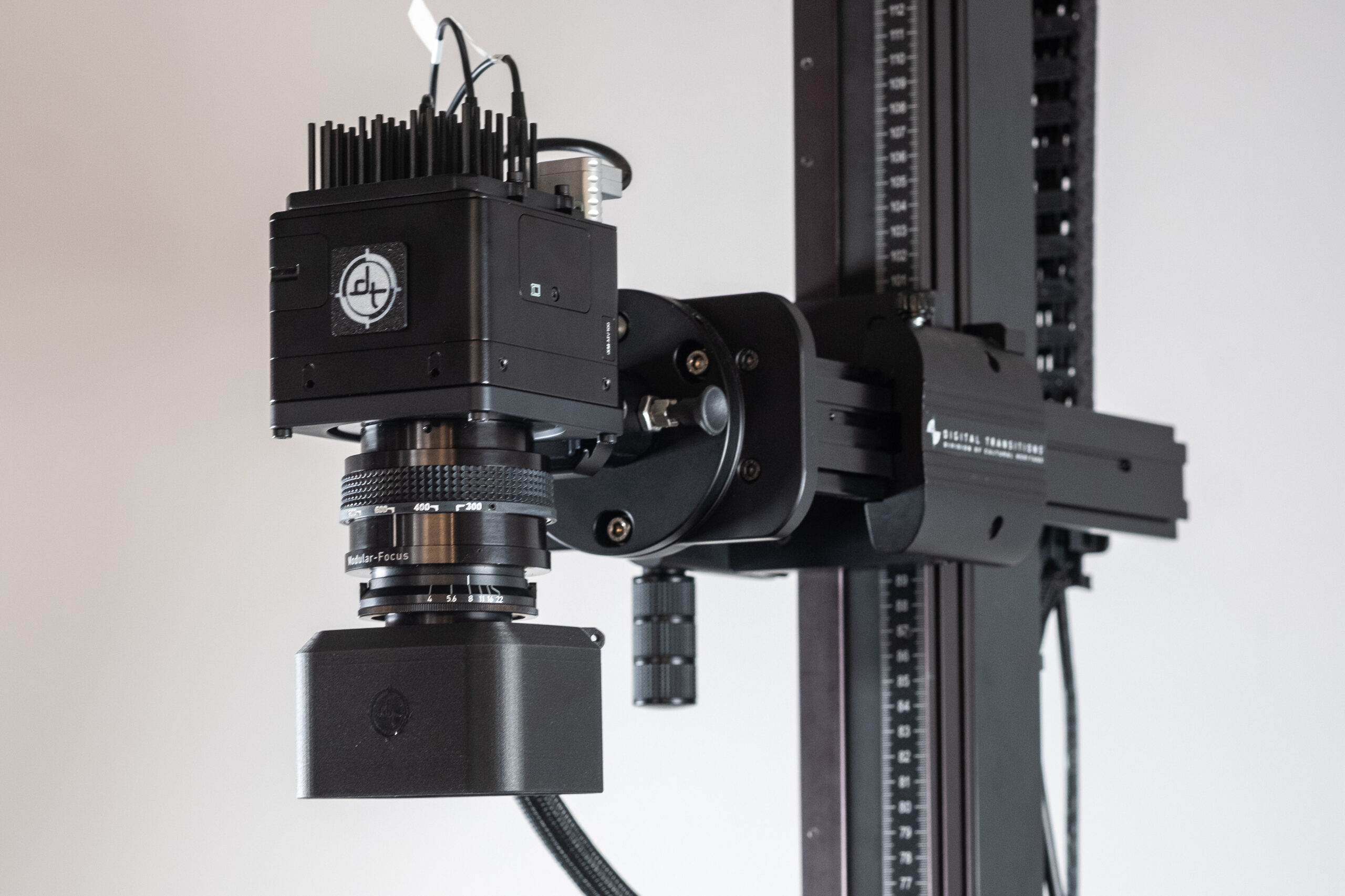

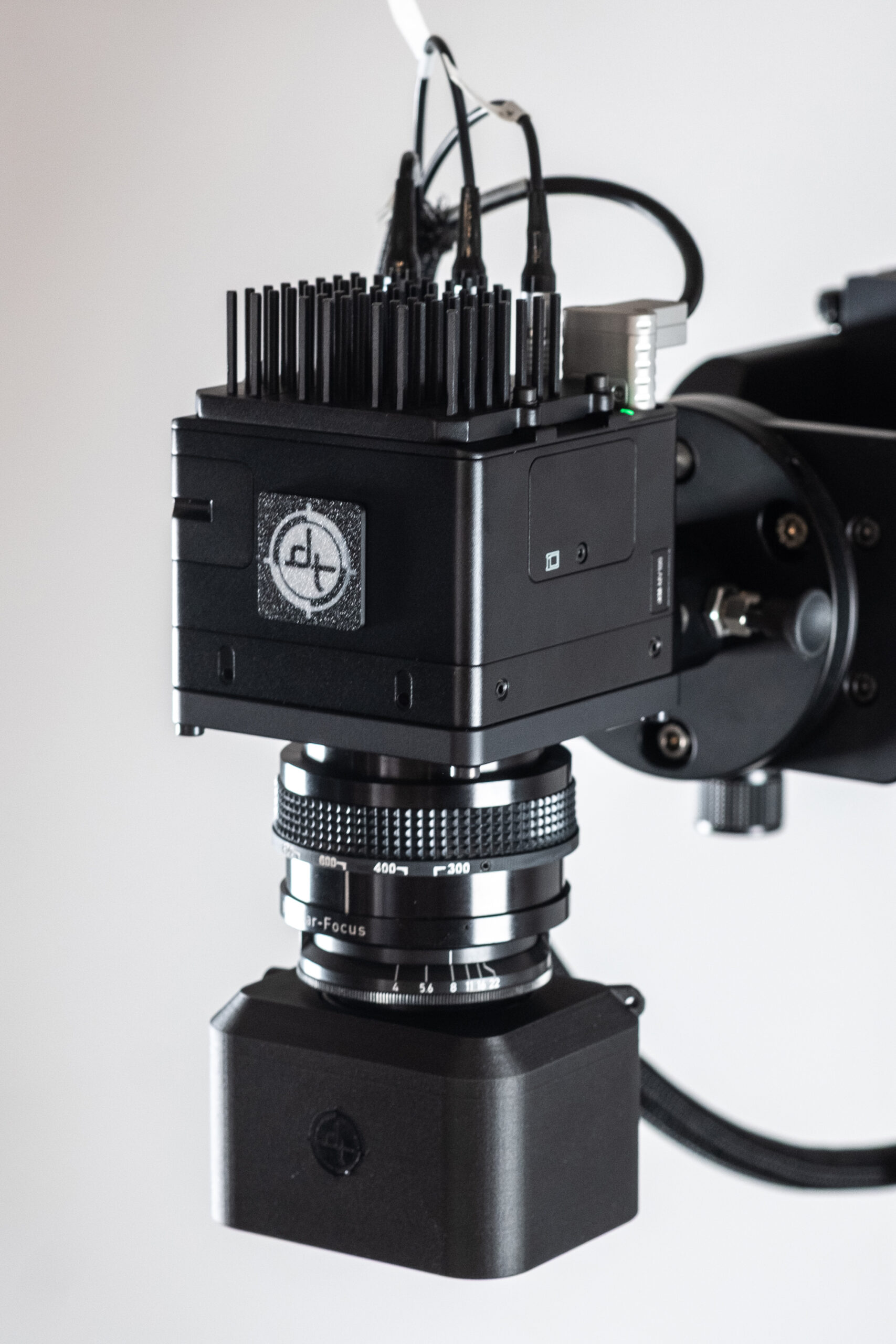

Sharing sensor technology and architecture with its iXH siblings, it utilizes high quality, high resolution, low distortion Linos Inspec.X Machine Vision lenses, USB-C and 10G connectivity, and purposefully designed heat sink integration, enabling high capture rate and noise-free images.
Exclusively from Digital Transitions

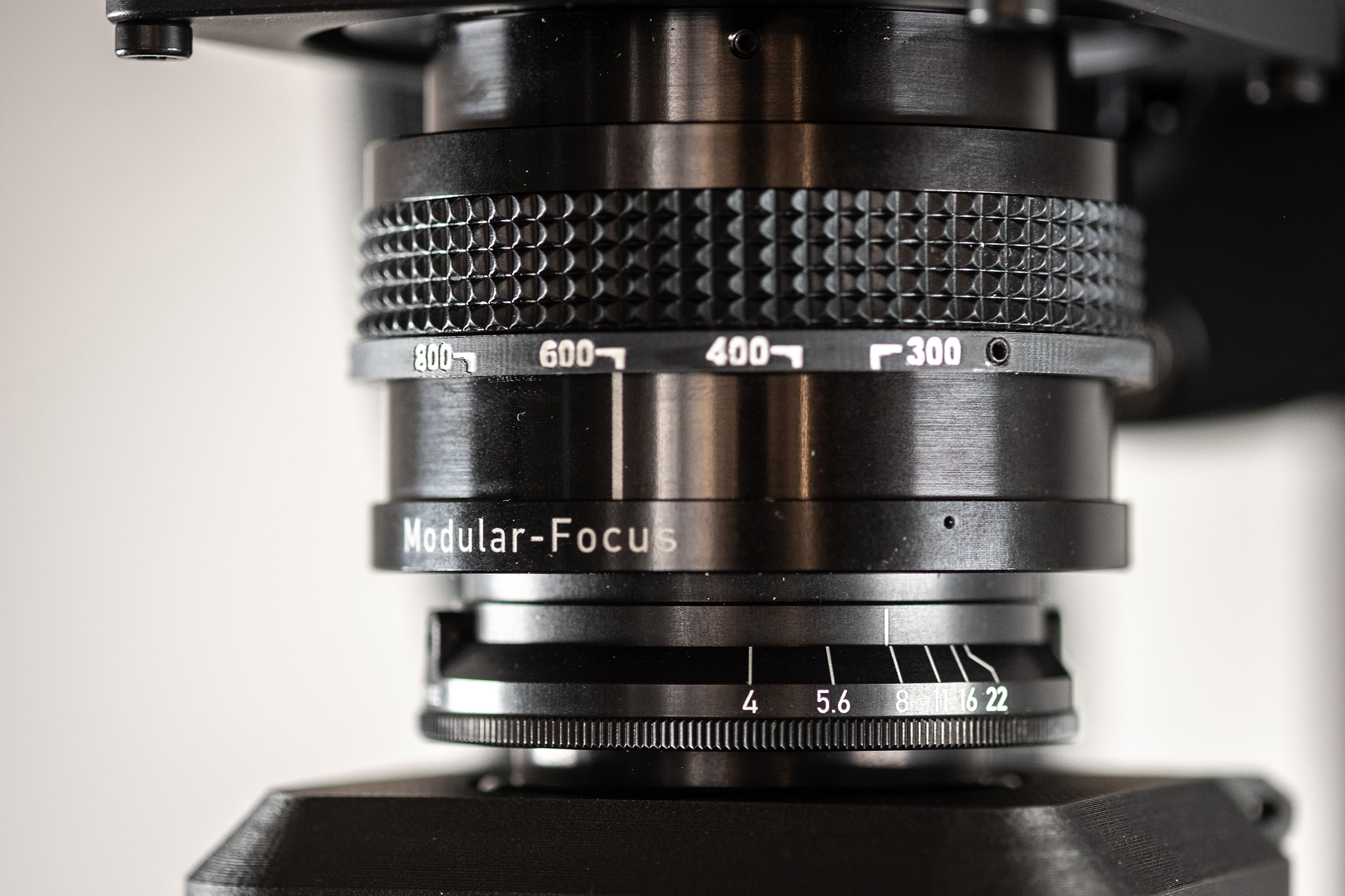

The PPI Ring
Easier, faster, more productive.
Instantly Adjust PPI with Ease
DT’s exclusive innovation, the PPI Ring for the RC 100 camera, makes setting your resolution and focus a single, simple step. By using the DT AutoColumn, you simply input the predetermined height for your preferred resolution in Capture One, then turn the PPI ring to the matching PPI, and your done.
Without this addition, you’d need to either measure and manually do the calculations for resolution, height, and focus, or go through a lengthy trial-and-error process in order to establish the correct settings.
You’ll achieve FADGI standards faster, easier, and without any additional process or expertise.
RC 100 Technical Specifications
Specifications |
|
| Resolution (pixels) | 101 Megapixel 11,656 x 8,742 |
| Pixel size (micron) | 3.76 |
| Effective sensor size (mm) | 43.9 x 32.9 |
| Color depth (per channel) | 16 bit / 14 bit |
| ISO range | 50-1,600 |
| Dynamic range (f-stop) | 15 |
| Capture rate (FPS) | 2.0 |
| Lens mount | M72mm, Phase One mount |
| Shutter type | On sensor Electronic Shutter |
| Shutter speed | 1/4000 - 1 hour |
| Focus positions | Manual |
| Focus control | Manual |
| Mechanical mounts | Arca-Swiss Dovetail, 3/8”, optional VHQ L-Bracket |
| Triggering options | Hand release, host capture from software, foot pedal |
| Live View / HDMI | 1,920 x 1,080 |
| Data storage | Tethered to Capture One CH |
| Dimensions (mm) with M72mm mount (exc lens) | 90x90x73 (90x90x103 with heat sink) |
| Weight with M72mm mount excluding lens and mechanical mounts | 630g |
| Operational temp range (c) | -10º to 40º |
| Humidity (%) | 15%-80% (office environment) |
| Lenses | Designed and manufactured by QiOptiq, The Linos Inspec.X lenses deliver the highest quality in terms of resolution, flatness, sharpness, distortion and color required for the most demanding reproduction applications |
| Inspec.X L 4/60mm | |
| Min. focusing distance (cm) | 55 mm |
| Power system, incl. 5m cable | 24V |
| Software | Capture One CH |
| Min. system requirements | See www.captureone.com for latest system requirements |
